orion
ORION is an industrial sewing unit for the awning industry.
It is the perfect solution for manufacturers who need high quality and optimal performance for sewing awnings in acrylic, polyester, technical textiles, PVC, etc. It allows working and positioning all size of fabrics even when cumbersome. ORION is equipped with a traveling tray. With its great versatility, the machine can be used in a wide range of industries and accomplishes a diverse range of sewing applications.
The technology, innovation and materials used in its construction make the ORION the perfect combination of efficiency, precision and sturdiness.

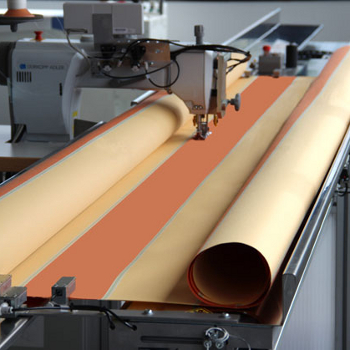

- ORION is an automatic linear sewing machine with travelling tray
- Industrial sewing for acrylics, polyester, PVC and technical textiles
- Applications: overlaps - lateral hems - reinforcement - insert PVC and/or pergola core
- Machine of high production capacity with high sewing speed

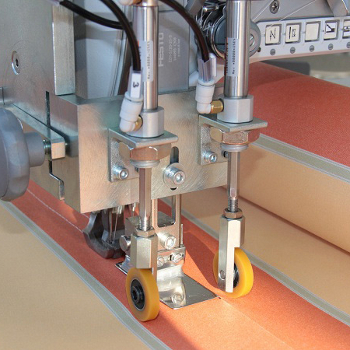

- Straight and perfect seams: 2 + 2 transport pneumatic clamps in front and back to give continuous tension during the sewing process
- Machine controlled by a PLC with digital display
- 3 working mode: automatic - semi automatic - manual
- 2 different positions to start up the sewing process (from sewing head or back transport clamp)
- Accurate machine with high quality in the sewing result - easy to use

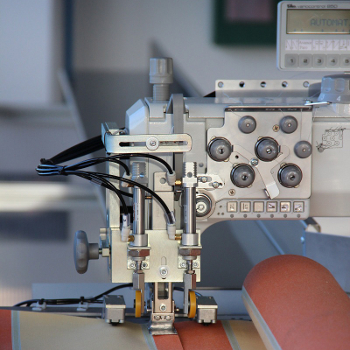

- Latest generation Dürkopp Adler cl· 867 sewing head with high capacity hook (increase capacity: 70%)
- Includes automatic devices: thread cutter - foot lifter - back tacking (begin - intermediate - end) - lubrication - remaining bobbin-thread control
- Sensor to detect the end of the fabric with automatic return
- Needle cooling (1)
- Thread brake sensor (1)
- Statistic records of sewing process (1)
- Customized guides for different operations according to the client needs
- Fast and easy to replace guides
- Illumination of the sewing area by LED
- Designed to be operated by only one person - low skill operator
- Complies with all the EC manufacture & safety rules
- Minimal maintenance
| Characteristics | |
|---|---|
| Automatic Sewing Machine | Travelling Tray |
| Useful Sewing (mm/in) (1) (2) | From 5600 mm up to 10000 mm | 220" up to 394" |
| Machine Length (mm/in) (1) (2) | From 12050 mm up to 21050 mm | 474" up to 829" |
| Device | Thread cutter - Foot lifter - Back-tack - Lubrication - Thread-bobbin control |
| Operation Mode | Automatic - Semi-automatic - Manual |
| Control Panel | PLC |
| Electrical Voltage (EU/US) | EU: 230 V - 50 Hz AC | US: 230 V - 60 Hz AC |
| Air Pressure | 6 bar |
(2) Precise measures are provided in metric system - Imperial values are for reference only.
