hercules
HERCULES is an industrial sewing unit for the awning industry.
It is the perfect solution for manufacturers who need high quality and optimal performance for sewing awnings in acrylic, polyester, technical textiles, PVC, etc. It allows working and positioning all size of fabrics even when they are cumbersome. HERCULES is equipped with a traveling sewing head. With its great versatility, the machine can be used in a wide range of industries and also accomplish a large range of sewing jobs.
- HERCULES is an automatic linear sewing machine with travelling sewing head
- Industrial sewing for acrylics, polyester, PVC and technical textiles
- Applications: overlaps - lateral hems - reinforcement - insert PVC and/or pergola core
- Machine of high production capacity with high sewing speed

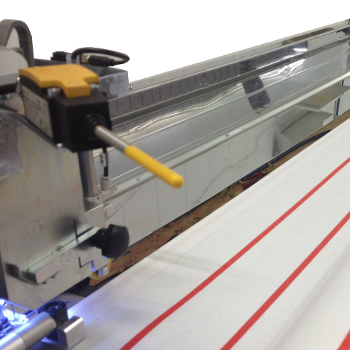

- Straight and perfect seams: 2 + 2 transport pneumatic clamps in front and back to give continuous tension during the sewing process
- Machine controlled by a PLC with digital display
- 3 working mode: automatic - semi automatic - manual
- 2 different positions to start up the sewing process (from sewing head or back transport clamp)
- Accurate machine with high quality in the sewing result - easy to use

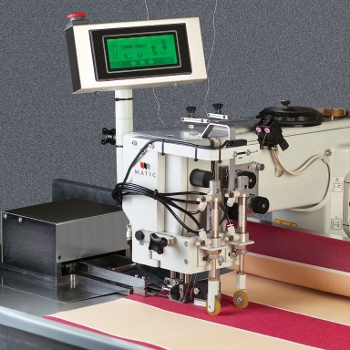

- Latest generation Dürkopp Adler cl· 867 sewing head with high capacity hook (increase capacity: 70%)
- Includes automatic devices: thread cutter - foot lifter - back tacking (begin - intermediate - end) - lubrication - remaining bobbin-thread control
- Sensor to detect the end of the fabric with automatic return
- Needle cooling
- Thread brake sensor
- Statistic records of sewing process
- Customized guides for different operations according to the client needs
- Fast and easy to replace guides
- Illumination of the sewing area by LED
- Designed to be operated by only one person - low skill operator
- Complies with all the EC manufacture & safety rules
- Minimal maintenance
| Characteristics | |
|---|---|
| Automatic Sewing Machine | Travelling Sewing Head |
| Useful Sewing (mm/in) (1) (2) | From 5600 mm up to 14000 mm | 220" up to 551" |
| Machine Length (mm/in) (1) (2) | From 7225 mm up to 15625 mm | 284" up to 615" |
| Automatic Device | Thread cutter - Foot lifter - Back-tack - Lubrication - Thread-bobbin control |
| Operation Mode | Automatic - Semi-automatic - Manual |
| Control Panel | PLC |
| Electrical Voltage (EU/US) | EU: 230 V - 50 Hz AC | US: 230 V - 60 Hz AC |
| Air Pressure | 6 bar |
(2) Precise measures are provided in metric system - Imperial values are for reference only.
