ares plus

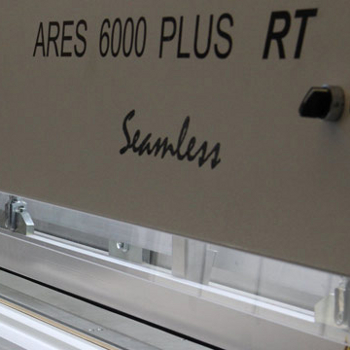

ARES PLUS is the most technologically advanced automatic welding machine on the market.
The complete automation of operations such as overlaps, hems, simple welds, reinforcements and zippers simplify the handling and work of any operator. ARES PLUS uses electric impulse welding technology. This technology is ideal for working with textiles such as PVC, screens, acrylics, polyesters and other fabrics. Furthermore, thanks to the innovative "Seamless" technology patented by Matic, it can perform completely invisible welding. Technology, innovation and materials used in its construction make the ARES PLUS the perfect combination of quality, precision, design and robustness.
- Automatic impulse welding machine for overlaps, hems, sides, simple welds, reinforcements, zippers, PVC profiles, etc.
- Automatic stoppers to position the fabric according to the desired operation
- Pocket size: from 22 to 90 mm - from 7/8" to 3 1/2" - easy and precise adjustment
- Depending on the model welds up to 6 meters - 19,68 feet - in a single stroke
- Side openings to easily move the fabric and keep welding in multiple strokes
- Welds PVC, screen fabrics, clear PVC, black-out, etc.
- Welds acrylics, polyester, coated fabrics and other textiles by adding the FixMatic thermal-welding tape
- Available models: 4 / 5 / 6 meters - 13,12 / 16,40 / 19,68 feet
- Ideal solution for producing roller blinds, awnings, PVC and/or textile banners, large format prints, lightboxes, display systems, cinema screens, etc.
- Working mode: automatic or manual - easy to change even during the welding process
- Multifunctional machine & easy to use
- Designed to be operated by only one person - low skilled operator
- Customized guides for welding zippers, plastic profiles, etc.
- Power Regulator: ideal to weld sensitive fabrics
- Heating and cooling time control
- Temperature Control: constant production and stable welding quality
- Turbo device: decreases the welding time & saves energy

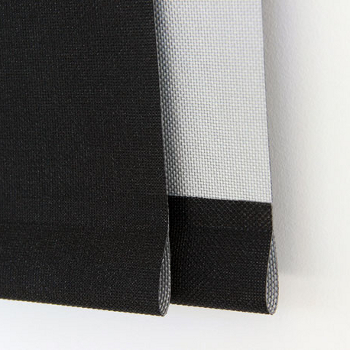

- Seamless technology: invisible welding - patented by Matic
- Only one simple element for adjustment - no extra tools needed to change the pocket size
- Automated pocket size
- Color touch screen: intuitive and easy to use PLC
- Saves up to 70 programs + 30 "Groups of work" (= 1 group can contain up to 10 different operations)
- Interface: real time status of the process, alarm messages, etc.
- Welding widths: 6, 10, 19 & 24 mm - 1/4", 3/8", 3/4\" & 1"
- Interchangeable electrodes
- Automatic fabric roller device
- Trays on front and back sides adapted to work with large or heavy fabrics
- Safety rules: complies with all the CE safety rules for the operator protection (pneumatic - electrical) - safety barriers
- Lighting of the welding area
- Minimal maintenance
| Characteristics | Ares 4000 | Ares 5000 | Ares 6000 |
|---|---|---|---|
| Welding Lenght (m/feet) (1) | 4 meters | 13,12 feet | 5 meters | 16,40 feet | 6 meters | 19,68 feet |
| Pocket Size (mm/in) (1) | From 22 to 90 mm | 7/8 to 3½" | From 22 to 90 mm | 7/8 to 3½" | From 22 to 90 mm | 7/8 to 3½" |
| Welding Width (mm/in) (1) | 6, 10, 19, 24mm 1/4", 3/8", 3/4", 1" |
6, 10, 19, 24mm 1/4", 3/8", 3/4", 1" |
6, 10, 19, 24mm 1/4", 3/8", 3/4", 1" |
| Electrical Voltage (EU/US) | EU: 400 V 3F+N 50 Hz AC US: 230 V 3F 60 Hz AC |
EU: 400 V 3F+N 50 Hz AC US: 230 V 3F 60 Hz AC |
EU: 400 V 3F+N 50 Hz AC US: 230 V 3F 60 Hz AC |
| Electrical Power | 8,5 kW | 12 kW | 14 kW |
| Air Pressure | 6 bar | 6 bar | 6 bar |
