ares
ARES is one the most versatile machine in the market to weld all kind of textiles by electrical impulse technology.
This technology is ideal for working with textiles such as PVC, screens, acrylics, polyesters and other fabrics. Designed to weld overlaps, hem pockets, reinforcements, zippers, PVC profiles, ARES welding machine is easy to use. It offers the operator the possibility of program, handling and modifying parameters according to each type of fabric in order to achieve optimum welding results. The welding machine ARES is the perfect combination of technology, design, durability and price.
- Semi-automatic impulse welding machine for overlaps, hems, seams, simple weld, reinforcements, zipper, PVC profiles, etc.

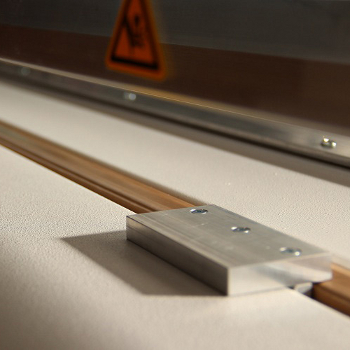

- Stoppers and guides to position the fabric according to the desired operation
- Pneumatic stops device to automate and simplifly the operation of overlap
- Pocket size: guide according to customer's needs
- Depending on the model welds up to 5 meters - 16,40 feet - in a single stroke
- Side opening to easily move the fabric and keep welding with multiple strokes
- Welds PVC, screen fabrics, clear PVC, black-out, etc.
- Welds acrylics, polyester, coated fabrics and other textiles by adding the FixMatic thermal-welding tape
- Available models: 3 / 4 / 5 meters - 9,84 / 13,12 / 16,40 feet
- Ideal solution for producing roller blinds, awnings, PVC and/or textile banners, large format prints, lightboxes, display systems, etc.
- Versatile & functional machine - easy to use - low skilled operator
- Customized guides for welding zippers, plastic profiles, etc.
- Power Regulator: ideal to weld sensitive fabrics
- Heating and cooling time control
- Turbo device: decreases the welding time & saves energy

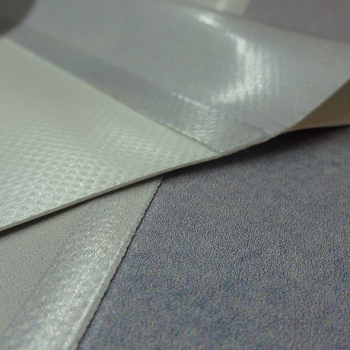

- Seamless technology: invisible welding - patented by Matic

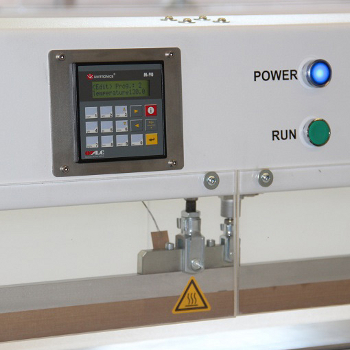

- PLC with digital display: intuitive and easy to use
- Save up to 99 programs
- Welding widths: 6, 10, 19 & 24 mm - 1/4", 3/8", 3/4" & 1"
- Interchangeable electrodes
- Automatic fabric roller device
- Trays on front and back sides adapted to work with large or heavy fabrics
- Safety rules: complies with all the CE safety rules for the operator protection (pneumatic - electrical) - safety barriers
- Minimal maintenance
| Characteristics | Ares 3000 | Ares 4000 | Ares 5000 |
|---|---|---|---|
| Welding Lenght (m/feet) (1) | 3 meters | 9,84 feet | 4 meters | 13,12 feet | 5 meters | 16,40 feet |
| Pocket Size | Customized | Customized | Customized |
| Welding Width (mm/in) (1) | 6, 10, 19, 24mm 1/4", 3/8", 3/4", 1" |
6, 10, 19, 24mm 1/4", 3/8", 3/4", 1" |
6, 10, 19, 24mm 1/4", 3/8", 3/4", 1" |
| Electrical Voltage (EU/US) | EU: 230V 50Hz AC US: 230V 60Hz AC |
EU: 230V 50Hz AC US: 230V 60Hz AC |
EU: 400V 50Hz AC US: 230V 60Hz AC |
| Electrical Power | 4 kW | 5 kW | 6,5 kW |
| Air Pressure | 6 bar | 6 bar | 6 bar |
